The heart of the Smartive system
Server
Product version

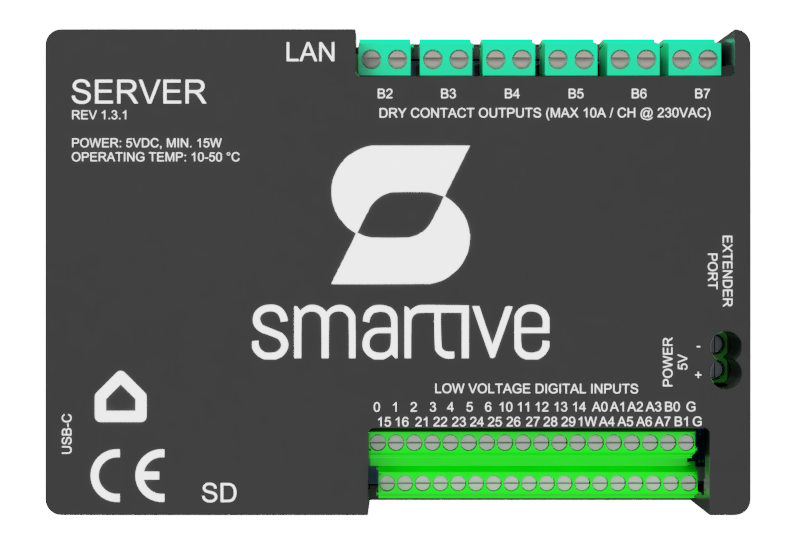

The Smartive Server is a DIN-rail-mountable, 5 VDC-powered building automation server and I/O controller. It comes with Linux-based control, Wi-Fi/BLE connectivity, 33 3.3 V digital inputs, a 1-Wire sensor interface, an extender port for up to 7 additional modules and 6 dry-contact relay outputs rated up to 10 A per channel at 230 VAC.
Specifications
- 33 digital inputs (0-3.3 V)
- 6 dry-contact relay outputs, max. 10 A/channel @ 230 VAC
- Built-in temperature and humidity sensor
- Extender port for connecting 7 more modules
- Switched circuit: max. 230 VAC; an external max. 10 A miniature circuit breaker or fuse is required per channel
- 5 VDC power from a CE-marked SELV power supply
- Linux-based control with Wi-Fi/BLE connectivity
- DIN-rail mountable, 133.5 x 92 x 32 mm
Local Smartive firmware
1-Wire sensor interface
Extender port for Smartive modules
OTA updates with digital signature
Downloadable documents
CE/RoHS documentation, declarations and installation labels.
Document language
PDFDocumentation: Rev. 1.3.0
